The WiFi compatible HUUM HIVE Mini 6 is a floor-mounted 6-kilowatt electric sauna heater designed for sauna rooms from 176 to 282 cubic feet.

The HIVE Mini 6 generates a soft, high heat and provides a superior sauna experience. Its elegant design enhances the design of any sauna interior. The sauna unit is crafted of high-grade stainless-steel and includes professional-quality heating elements.

The HIVE Mini 6 combines modern design and craftsmanship with innovative features. The sauna unit is engineered so that the sauna rocks are in direct contact with the heating elements for more efficient transference of heat. It has a large 330-pound stone capacity to radiate a much more consistent heat.

The HUUM HIVE Mini 6 6kW floor-standing heater operates in 240V, single-phase (1PH).

HUUM HIVE Mini Series heaters are precision-crafted in Estonia to provide years of dependable operation. HUUM HIVE Heaters are SGS Listed to ensure quality and safety.

The HIVE Mini 6 sauna unit requires an UKU or UKU WiFi control for operation. Select the control with the color and features that best suit your preferences. The available HUUM UKU mobile app lets you preset WiFi equipped saunas from anywhere using your smartphone for the ultimate convenience.

The Mini 6 sauna heating unit carries HUUM's limited 5-year warranty and is fully serviceable.

Hive Mini 6.0kW Sauna Heater
- Elegant design
- 240V/1PH operation
- For sauna rooms from 176 to 282 cu. ft.
- Works with UKU controls (sold separately)
- 330 pound stone capacity (required 10 boxes sold separately)
- Direct contact between stones and heating elements
- More exposed stones create a longer and milder heat
- Stainless steel construction
- Stainless steel, industrial quality heating elements
- Floor model with adjustable legs
- Designed, engineered, and made in Estonia
- Dimensions: 18.1" Diameter (460mm) x 29.5" H (750mm)
- SGS Listed
- Limited 5-year warranty (excluding elements)
UKU
- Sleek Black control display panel
- Multiple Color Options available (additional charges apply)
- Settable on/off, time, temperature, and delay
- Settable temperature range of 104-230F
- Delayed start up to 48hrs in advance
- Optional Built-in Wi-Fi interface for HUUM mobile app (additional charges apply)
- 8 Language options: English, German, Russian, Italian, Finnish, Estonian, Polish and French
- Inside/outside sauna room installation
- Optional smart heating setting
- Available decorative control display panels
- Displays set temperature and room temperature
- Temperature sensor
- Door sensor to keep the heat inside the room
- Remotely located main control module
- Connects to lights and ventilation
- Overheat protection
- Child safety lock
- Control Console Dimensions: 2.2"W (55mm) x 0.9"D (22mm) x 4.1"H (105mm)
- Main Control Module Dimensions: 3.5"W (90mm) x 2.3"D (58mm) x 5.6"H (142mm)
Stones 24
- Olivine diabase sauna stones
- Rounded shape to complement heater design
- Durable with high-heat capacity
- Stones range from 2" to 4" (5-10 cm)
Hive Mini 6
- Kilowatt Rating: 6.0 KW
- Minimum Cubic Feet: 176 CF
- Maximum Cubic Feet: 282 CF
- Heater Weight: 31 lbs
- Shipping Weight with Sauna Stones: 361 lbs
- 240V, Single Phase Amperage: 25 Amps
- Circuit Breaker: 30
- Wire Size AWG: 10
- Diameter: 18.1" (460mm)
- Height: 29.5" (750mm)
UKU
- Minimum Temperature Setting: 104 F
- Maximum Temperature Setting: 230 F
- Shipping Weight: 20 lbs
- Console Dimensions
- Width: 2.2" (55mm)
- Depth: 0.9" (22mm)
- Height: 4.1" (105mm)
- Main Module Dimensions
- Width: 3.5" (90mm)
- Depth: 2.3" (58mm)
- Height: 5.6" (142mm)
- Display Panel Cable
- Length: 9.8 ft
- AWG: 22
- Temp Sensor Cable
- Length: 16.4 ft
- AWG: 24
- Door Sensor Cable
- Length: 16.4 ft
- AWG: 24
HIVE Mini 6kW Sauna Heater
- 6.0kW Sauna heater
- Adjustable legs
- Installation and Operation manual
- 5-Year limited warranty (excluding elements)
UKU
- Black Control console
- Main control module
- Temperature sensor
- Door sensor
- Control display panel cable
- Temperature sensor cable
- Door sensor cable
- Installation and operation manual
- 5-Year limited warranty
Stones 24
- 330 lbs of 2" - 4" (5-10 cm) round Olivine sauna stones
- Rail HM (Safety Rail for HIVE Mini heaters). Beautiful light-colored wooden arcs complement the design of the heater.

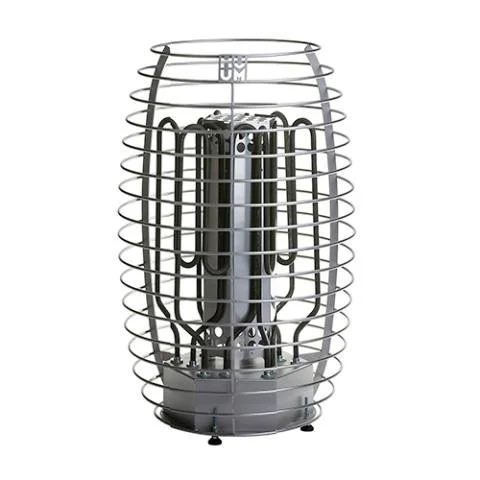

- The Air Tunnel has been a HIVE option that speeds up heating by 25%, enhances air circulation, and increases the lifespan of the heating elements. This stainless-steel housing is installed in the center of the heater and will reduce stone capacity by an estimated 2 boxes.
- The embedding flange is useful when you are planning to install your HIVE heater partly inside the sauna bench.
- Current ETA: 1-2 weeks. Shipping lead time is subject to change.
- FREE shipping within the contiguous United States.
- The weight or packaging of this product requires delivery by special appointment, and on a wooden pallet.
- The driver is responsible for curbside delivery only and will lower the items to ground level.
- Prior to shipping this product, we’ll contact the customer to share shipment details and discuss any extenuating delivery circumstances that may complicate or cause additional delivery expenses.
**If you’re in Canada, please reach out for a shipping quote.
