Ergonomics – Barrel Sauna Comfort

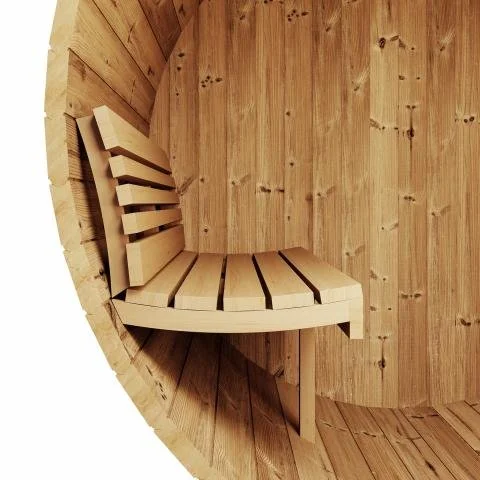

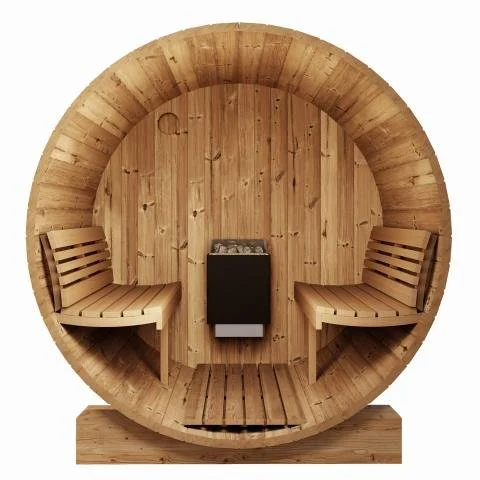

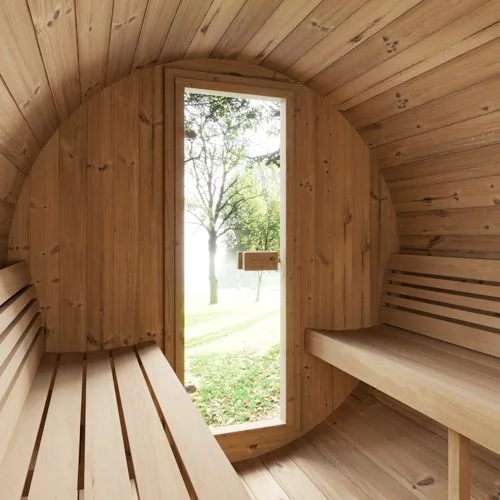

Bathing comfort cannot be overlooked when investing in an outdoor sauna barrel. The diameter of the barrel and the bench/backrest configuration must be considered. Barrels with a small diameter may be priced lower (less materials), but the tradeoffs are door height, bench comfort, and headroom. Smaller diameter barrels have a tighter arc which can create seating posture challenges, impact standing upright, and require one to duck upon entry and exit. ERGO Series Sauna Barrels benefit from a 6’5” interior height. Due to its large diameter, benches can be ergonomically contoured and formfitting. The generous barrel arc can support an expansive and arched backrest for true lumbar support. Touch and feel were not ignored when selecting the knot-free, silky-smooth grade-A Thermo-Aspen seating material designed to hug most any body size.

Durability – A lifetime of outdoor bathing pleasure

Did you know that Thermo-Spruce lasts up to 2X longer than Cedar wood? Every SaunaLife barrel begins with industry-leading 1.65” thick full-length staves that encapsulate the sauna and provide exceptional thermal resistance (R-value). This chemical-free, eco-friendly wood is dimensionally stable and ideally suited for outdoor saunas. We even build showers out of it! Wood thickness is the theme in the SaunaLife ERGO Series and provides bathers with ergonomically crafted benches and backrests from Thermo-Aspen (1.1” thick and 3-1/2” wide) nearly 50% thicker than most.

Ingenuity - Engineered to exceed expectations

Don’t let the simple design and installation process fool you, the ERGO-Series is jam-packed with barrel sauna innovation. Go ahead and splash the water, these beautiful outdoor spaces are built to thrive with water! It begins with industry-leading 1-7/8” wide and 1/8” thick stainless steel barrel bands that compress the massive staves and create your wellness retreat. Then, a watertight DIY shingle kit (a necessity for every barrel sauna) with side-mounted drip edges provides exceptional rainwater management. Inside the barrels are dual floor drains. One is purposefully placed under the sauna heater for your water-tossing pleasure. A second drain is near the door, where cold plunge or pool water may collect. Should this barrel shift out of level, these dual floor drains have you covered.

Illumination – Inside and out

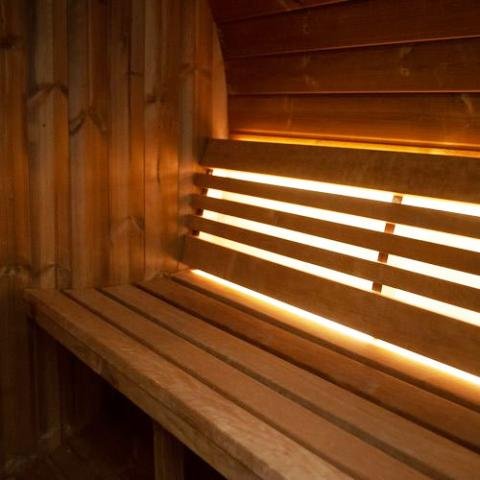

Illuminating your barrel showcases the beauty of the wood and enhances your sauna experience. Only low-voltage and waterproof LED lighting will do. SaunaLife provides a superior white LED lighting system that is Wi-Fi app-based and allows one to set the ideal scene prior to entering the sauna. A hand-held remote control is also provided for on/off/dim operation. SaunaLife’s white LED fixture is heat and water certified (IP67) and is dotless so it provides an enchanting, even glow. Expandable up to four white fixtures, explore the available E Sconce+ Package which provides two striking out-door LED wall sconces and a secondary interior LED lightbar for ideal outdoor sauna ambiance. For the ultimate backyard sauna party attraction, consider adding E MOOD Lighting Package for both the inspirational and relaxing visual effects that an infinite range of color affords.

Beauty – A compliment to most any outdoor oasis

SaunaLife sources the highest quality Nordic Spruce and dries it to a rich golden color that accentuates its distinctive grain and rustic tight-knot charm. The barrel interior benefits from ergonomically designed benches and backrests of ultra-smooth Thermo-Aspen, a grade-A wood species that is rich in color, and free from knots. A complimentary bottle of paraffin oil, a natural wax, is provided to enrich and preserve the interior luster.

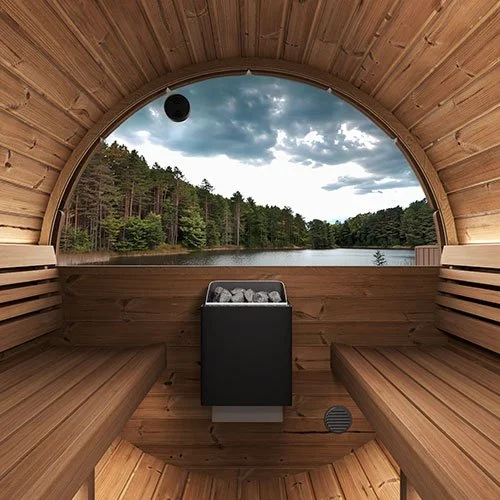

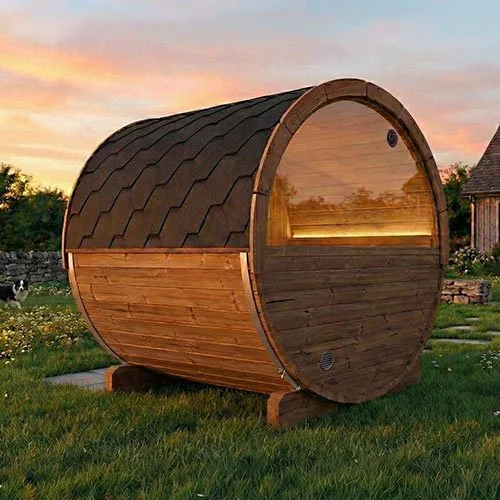

Panoramic half-moon rear window (for E7W Model Only)

A visually stunning, tempered half-moon rear window lets natural light in, adding an incredible spaciousness to your sauna barrel. Enjoy a calming view of nature while you bask in the soothing heat of your outdoor wellness sanctuary. This expansive tempered glass window will further enhance your comfort and elevate your sauna experience.

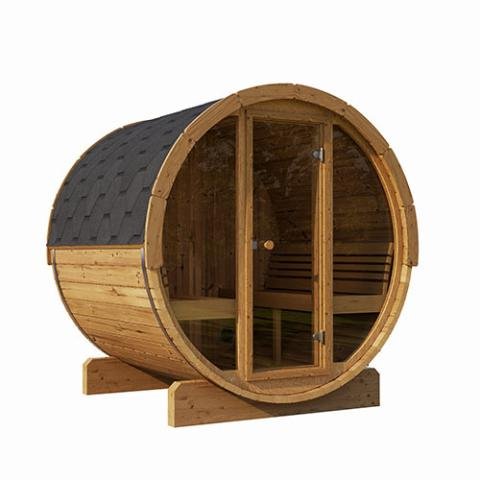

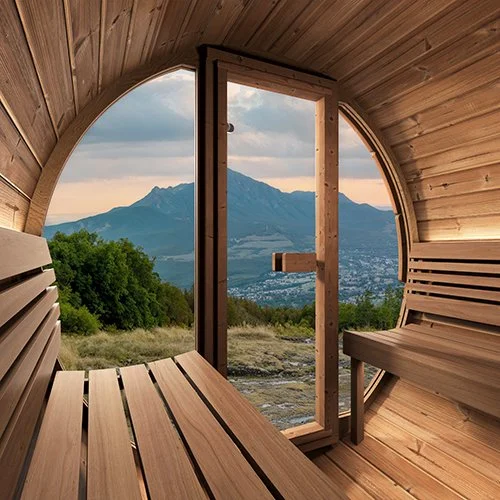

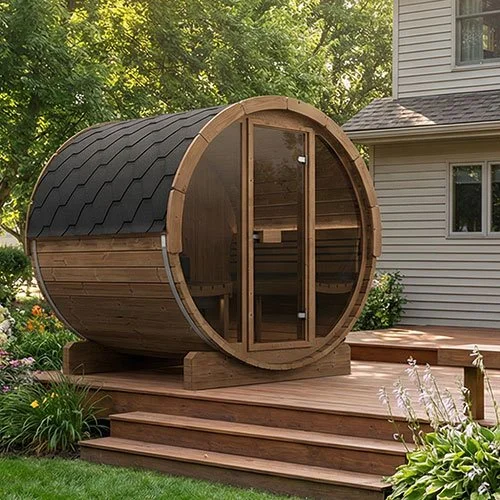

Full-glass front wall (for E7G Model Only)

Nothing adds to a spacious feeling like expansive windows. The Model E7G features bronzed, full-height, tempered glass sidelight windows that, combined with the matching tempered glass door, create a full glass front wall. The natural light will open up the space to create an incredibly airy and relaxing sauna while providing amazing views of the outdoors.

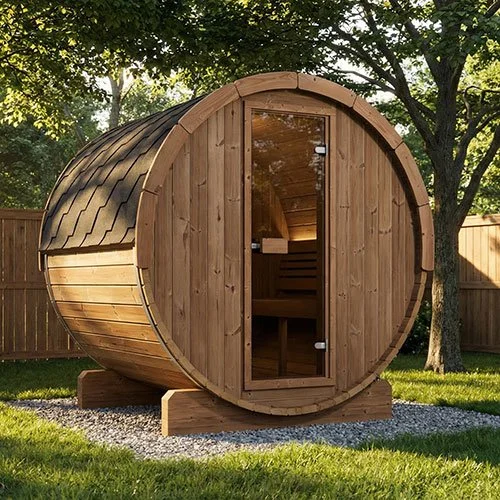

Model E7/E7W/E7G Sauna Barrel
- Thermo-Spruce materials (lasts up to 2X longer than Cedar)
- Designed for ergonomic sauna bathing experiences
- Spacious 6’-5” interior height
- Engineered for simple DIY installation (1-day, 2-persons)
- Industry-leading wall, bench, and backrest material thicknesses
- Panoramic half-moon rear window (for E7W Model Only)
- Full front glass view (for E7G Model Only)
- Superior thermal resistance (R-value)
- Curved Thermo-Aspen benches for bather comfort
- Premium arched backrest for all body sizes
- Dual floor drains for effective water elimination
- Black shingle roof kit for weather-tight installation
- Roof drip edge for rainwater management
- Tempered bronze glass (5/16” thick)
- Enhanced bathing ambiance with E SCONCE+ and E MOOD lighting upgrades
- Heavy-duty stainless steel barrel bands (1-7/8” wide x 1/8” thick)
- Paraffin oil is provided to enrich and preserve sauna barrel luster
- Extra Thermo-Spruce staves to ensure success (2)
- Sauna heater guard
- Intake and exhaust air vents
- Exterior dimensions - 71” long and 81” diameter
- Interior dimensions - 63” long and 77” diameter
- Up to 4 bathers
- Designed by SaunaLife and handcrafted in Northern Europe
Thermo-Spruce Barrel Sauna Advantages
- Lasts up to 2X longer than Cedar
- Superior thermal resistance (R-value)
- Eco-friendly
- Chemical-free
- Golden color
- Ideal sauna use (stable)
- Rustic tight knot charm
White LED Light Bar System with Wi-Fi App
- Dottless white glowing LED lighting
- Wi-Fi, app-based operation capability
- Wireless handheld remote (IP20) and control mounting cradle
- Water and heat-rated LED and wire connections (IP67)
- Flush or articulating mounting clips to set the ideal scene
- Low voltage (24-volt DC) operation for bathing safety
- 30’ light cable (IP67) to suit all installation applications
- Expandable to control up to four white LED light sources (see E SCONCE+ Package)
ESCONCE+ Lighting Upgrade
- Exterior Light Sconce Set Plus 48" Interior LED Bar
- Thermo-Aspen Wood
- Adds layers of ambient light
- Dimmable LED
- Energy Efficient
- App-based Wi-Fi control
EMOOD Lighting Upgrade
- Ceiling-mounted color LED light valance
- Thermo-Aspen Wood
- Promotes tranquility
- Stimulates the circulatory system
- Provides regenerative stimulation to the immune system
- Mood Lighting
Model E7
- Barrel Material: Thermo-Spruce
- Bench & Backrest Material: Thermo-Aspen
- Interior Dimensions: 63"L x 77"Diameter
- Exterior Dimensions: 71"L x 81"Diameter
- Bench Depth: 17.8"
- Stave Thickness: 1.65"
- Glass Thickness: 5/16"
- Shipping Dimensions: 78"L x 43"W x 33"H
- Weight: 1212 lbs
Model E7W
- Barrel Material: Thermo-Spruce
- Bench & Backrest Material: Thermo-Aspen
- Interior Dimensions: 63"L x 77"Diameter
- Exterior Dimensions: 71"L x 81"Diameter
- Bench Depth: 17.8"
- Stave Thickness: 1.65"
- Glass Thickness: 5/16"
- Shipping Dimensions: 80"L x 44"W x 41"H
- Weight: 1235 lbs
Model E7G
- Barrel Material: Thermo-Spruce
- Bench & Backrest Material: Thermo-Aspen
- Interior Dimensions: 63"L x 77"Diameter
- Exterior Dimensions: 71"L x 81"Diameter
- Bench Depth: 17.8"
- Stave Thickness: 1.65"
- Shipping Dimensions: 80"L x 44"W x 37"H
- Shipping Weight: 1279 lbs
Lighting
- Operating Voltage: 24VDC
- Wattage: 11.32W
- Connection Type: IP67 Twist Lock 2 Pin
- IP Rating: IP67
- Certification: cETLus/SGS/TUV
Power Supply
- Input Voltage: 120VAC
- Output Voltage: 24VDC
- Rated Power: 90W
- Certification: UL, CE, FCC
- Lumber Type: The E7/E7W/E7G is constructed using Thermo-Spruce materials.
- Heater: The E7/E7W/E7G is best equipped with a 6kW electric heater, and you can choose from either a HUUM or a HARVIA heater.
- Door Style: The E7/E7W/E7G comes standard with a tempered bronze glass door.
- Rear Window or Front Glass Wall: Open the barrel sauna interior to breathtaking views with the addition of either the Panoramic half-moon rear window or full-glass front wall.
- Floor Kit: The thermo-spruce E7 Floor Kit provides a sturdy, level walking surface for the Barrel Sauna. Measures 63”x24”x4”.
- Lighting Upgrade: The E7/E7W/E7G comes standard with a White LED Light Bar System and the ambiance can be enhanced with either E SCONCE+ or E MOOD lighting upgrade.
Model E7/E7W/E7G Sauna Barrel
- Full-length Thermo-Spruce staves (1.65” thick)
- Benches of Thermo-Aspen (1.1” bench tops, no knots)
- Backrest of Thermo-Aspen (1.1” rests, no knots)
- Panoramic half-moon rear window (for E7W Sauna Barrel Only)
- Full front glass view (for E7G Sauna Barrel Only)
- Tempered bronze glass door
- Stainless steel barrel bands
- Black roof shingle kit
- Spruce cradles
- Spruce fascia boards
- Air intake and exhaust vents
- Extra staves (2)
- Fastener kit
- Paraffin oil, 16.9 oz bottle (500ml)
- Installation instructions
White LED Light Bar System with Wi-Fi App
- White LED light bar (1)
- Wi-Fi, app-based operation
- Wireless handheld remote & mounting cradle
- 90W power supply
- Driver
- 30’ light cable
- Mounting clips, articulating (3)
- Mounting clips, flush (3)
- Installation instructions
- Current ETA: 1-2 weeks. Shipping lead time is subject to change.
- Flat rate shipping included within the contiguous United States. Additional fees required for shipping to Canada. Shipping rates to Alaska, Hawaii, or Puerto Rico will need to be quoted.
- Shipping costs for a sauna heater and related accessories are included when shipped with the room.

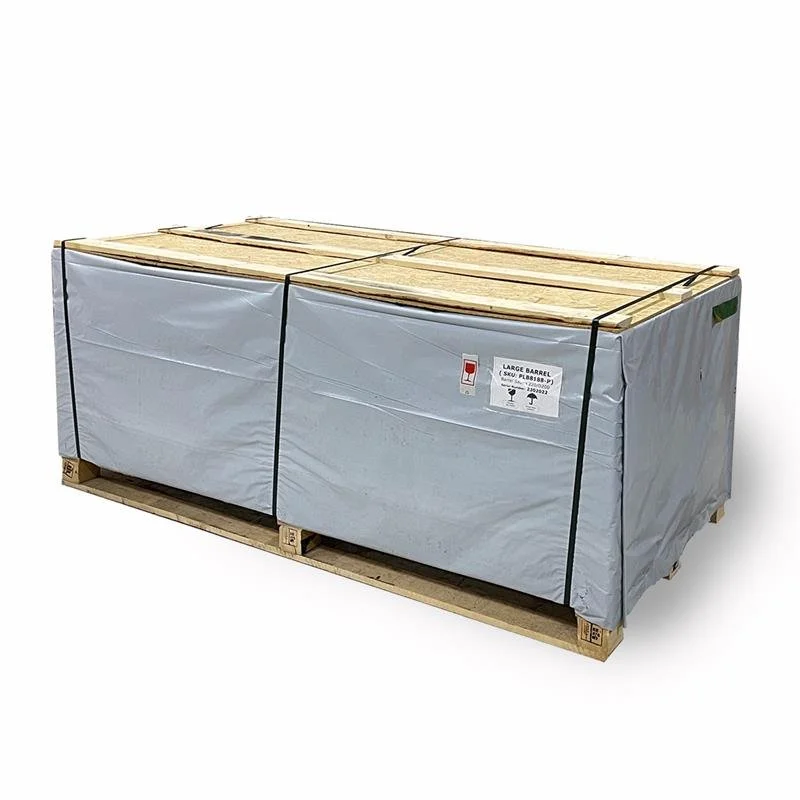

- The weight or size of this product requires truck delivery by special appointment (LTL), on an oversized pallet.
- The driver is responsible for curbside delivery only and will lower the items to ground level. The customer is responsible for transporting the contents into the home or facility.
- Prior to shipping this product, we will call to share shipment details and discuss any extenuating delivery circumstances that may complicate or cause additional delivery expenses.
