E7 4-PERSON BARREL SAUNA x S1 1-PERSON COLD PLUNGE

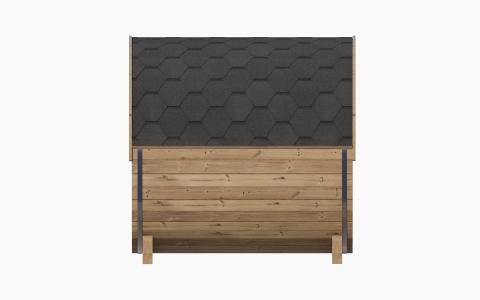

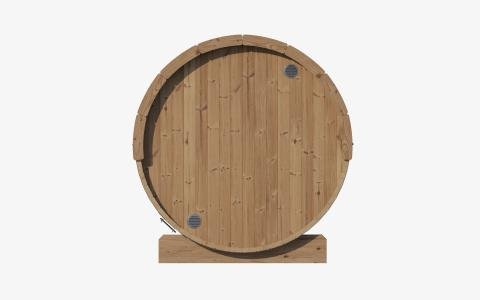

E7 Sauna Barrel

• Thermo-Spruce materials (lasts up to 2X longer than Cedar)

• Designed for ergonomic sauna bathing experiences

• Spacious 6’-5” interior height

• Engineered for simple DIY installation (1-day, 2-persons)

• Industry-leading wall, bench, and backrest material thicknesses

• Superior thermal resistance (R-value)

• Curved Thermo-Aspen benches for bather comfort

• Premium arched backrest for all body sizes

• Dual floor drains for effective water elimination

• Black shingle roof kit for weather-tight installation

• Roof drip edge for rainwater management

• Tempered bronze glass (5/16” thick)

• Heavy-duty stainless steel barrel bands (1-7/8” wide x 1/8” thick)

• Paraffin oil is provided to enrich and preserve sauna barrel luster

• Extra Thermo-Spruce staves to ensure success (2)

• Sauna heater guard

• Intake and exhaust air vents

• Exterior dimensions - 71” long and 81” diameter

• Interior dimensions - 63” long and 77” diameter

• Up to 4 bathers

• Designed by SaunaLife and handcrafted in Northern Europe

Thermo-Spruce Barrel Sauna Advantages

• Lasts up to 2X longer than Cedar

• Superior thermal resistance (R-value)

• Eco-friendly

• Chemical-free

• Golden color

• Ideal sauna use (stable)

• Rustic tight knot charm

White LED Light Bar System with Wi-Fi App

• Dottless white glowing LED lighting

• Wi-Fi, app-based operation capability

• Wireless handheld remote (IP20) and control mounting cradle

• Water and heat-rated LED and wire connections (IP67)

• Flush or articulating mounting clips to set the ideal scene

• Low voltage (24-volt DC) operation for bathing safety

• 30’ light cable (IP67) to suit all installation applications

• Expandable to control up to four white LED light sources

Cold Plunge S1N (Natural)

• Thermo-Pine materials (lasts up to 2X longer than Cedar)

• Luxury outdoor cold/hot immersion tub

• Designed for outdoor ergonomic cold/hot tub bathing experiences

• Arrives fully assembled

• Spacious interior holds over 124 gallons of pure water bathing pleasure

• Thick dark grey contoured fiberglass lining provides enhanced bather comfort

• Durable Thermo-Pine tub surround (1.65” thick 0.74cm)

• Matching Thermo-Pine wood steps for easy access

• Up to 1 bather

• Exterior dimensions – 41.3 "H (105cm) x 40" Diameter (102cm)

• Interior dimensions – 34.4" Diameter (87cm) x 36" Deep (91cm)

• Designed by SaunaLife and handcrafted in Northern Europe

DROP Heater

• See details here

Cilindro Heater

• See details here

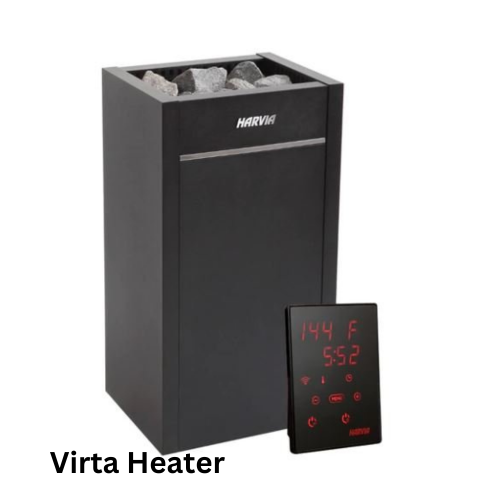

Virta Heater

• See details here

E7 Sauna Barrel

• Barrel Material: Thermo-Spruce

• Bench & Backrest Material: Thermo-Aspen

• Interior Dimensions: 63"L x 77"Diameter

• Exterior Dimensions: 71"L x 81"Diameter

• Bench Depth: 17.8"

• Stave Thickness: 1.65"

• Glass Thickness: 5/16"

• Shipping Dimensions: 78"L x 43"W x 33"H

• Weight: 1212 lbs

Lighting

• Operating Voltage: 24VDC

• Wattage: 11.32W

• Connection Type: IP67 Twist Lock 2 Pin

• IP Rating: IP67

• Certification: cETLus/SGS/TUV

Power Supply

• Input Voltage: 120VAC

• Output Voltage: 24VDC

• Rated Power: 90W

• Certification: UL, CE, FCC

Cold Plunge S1N (Natural)

• Material: Thermo-Pine

• Interior Dimensions: 34.4" Diameter (87cm) x 36" Deep (91cm)

• Exterior Dimensions: 41.3 "H (105cm) x 40" Diameter (102cm)

• Water Capacity: 124 Gallons

• Product Weight when filled: 1177 lbs (534kg)

• Shipping Dimensions: 47.8"L (121cm) x 46"W (117cm) x 48.1"H (122cm)

• Shipping Weight: 265 lbs (120kg)

DROP Heater

• See details here

Cilindro Heater

• See details here

Virta Heater

• See details here

E7 Sauna Barrel

• Full-length Thermo-Spruce staves (1.65” thick)

• Benches of Thermo-Aspen (1.1” bench tops, no knots)

• Backrest of Thermo-Aspen (1.1” rests, no knots)

• Panoramic half-moon rear window (for E7W Sauna Barrel Only)

• Full front glass view (for E7G Sauna Barrel Only)

• Tempered bronze glass door

• Stainless steel barrel bands

• Black roof shingle kit

• Spruce cradles

• Spruce fascia boards

• Air intake and exhaust vents

• Extra staves (2)

• Fastener kit

• Paraffin oil, 16.9 oz bottle (500ml)

• Installation instructions

White LED Light Bar System with Wi-Fi App

• White LED light bar (1)

• Wi-Fi, app-based operation

• Wireless handheld remote & mounting cradle

• 90W power supply

• Driver

• 30’ light cable

• Mounting clips, articulating (3)

• Mounting clips, flush (3)

• Installation instructions

Cold Plunge S1N (Natural)

• Thermowood walls 0.7" (1.7cm)

• Foundation Beams 3.94" (10cm) x3.94" (10cm)

• Round Deluxe Stairs

• Drainage 1" (3cm)

• Chiller Connections 3/4" (2cm) NPT

• Fiberglass Insert - Grey - Ergonomic

• Flat rate shipping included within the contiguous United States. Additional fees required for shipping to Canada. Shipping rates to Alaska, Hawaii, or Puerto Rico will need to be quoted.

• Shipping costs for a sauna heater and related accessories are included when shipped with the room.

• The weight and packaging of this handcrafted sauna sanctuary requires delivery by special appointment, and on a wooden pallet.

• The driver is responsible for curbside delivery only and will lower the items to ground level. The customer is responsible for transporting the contents into the home or facility.

• Prior to shipping this product, we will call to share shipment details and discuss any extenuating delivery circumstances that may complicate or cause additional delivery expenses.

E7 Installation Manual

E7 Diagram

S1 Installation Manual

Drop Heater Manual, UKU Controller Manual

Cilindro Heater Manual, Xenio Controller Manual

Virta Heater Manual, Xenio Controller Manual
