HUUM HIVE 12.0KW ELECTRIC HEATER PACKAGE

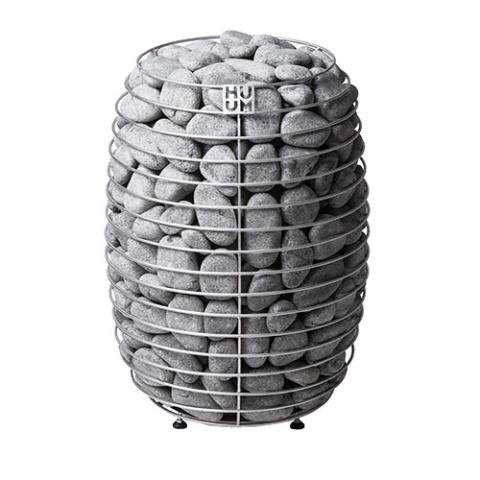

HIVE 12.0kW Sauna Heater

• Elegant design

• Suitable for commercial use

• 240V/1PH operation

• For sauna rooms from 424 to 883 cu. ft.

• Works with UKU controls

• Works with UKU extension box

• Large 528 pound stone capacity

• Direct contact between stones and heating elements

• More exposed stones create a longer and milder heat

• Stainless steel construction

• Stainless steel, industrial quality heating elements​

• Floor model with adjustable legs

• Air tunnel shortens heat-up time and increases life of heating elements

• Designed, engineered, and made in Estonia

• Dimensions: 22"Diameter (560mm) x 29.5"H (750mm)

• SGS listed

• Limited 5-year warranty (excluding elements)

UKU Control

• Sleek black control display panel

• Multiple color options available (additional charges apply)

• Settable on/off, time, temperature, and delay

• Settable temperature range of 104-230°F

• Delayed start up to 48hrs in advance

• Optional built-in Wi-Fi interface for HUUM mobile app (additional charges apply)

• 8 language options: English, German, Russian, Italian, Finnish, Estonian, Polish and French

• Inside/outside sauna room installation

• Optional smart heating setting

• Available decorative control display panels

• Displays set temperature and room temperature

• Temperature sensor

• Door sensor to keep the heat inside the room

• Remotely located main control module

• Connects to lights and ventilation

• Overheat protection

• Child safety lock

• Control Console Dimensions: 2.2"W (55mm) x 0.9"D (22mm) x 4.1"H (105mm)

• Main Control Module Dimensions: 3.5"W (90mm) x 2.3"D (58mm) x 5.6"H (142mm)

• Limited 5-year warranty

UKU Extension Box

• For use with UKU controls

• For heaters over 12kW

• Dimensions: 7"W (178mm) x 4"D (101mm) x 10"H (254mm)

• Limited 5-year warranty

Stones 24

• Olivine diabase sauna stones

• Rounded shape to complement heater design

• Durable with high-heat capacity

• Stones range from 2" to 4" (5-10 cm)

HIVE 12STUX Pkg

HIVE 12.0kW Sauna Heater

• 12.0kW Sauna Heater

• Adjustable Legs

• Pre-Installed HIVE Air Tunnel

• Installation and Operation Manual

• 5-Year Limited Warranty (excluding elements)

UKU Control

• Black Control Console

• Main Control Module

• Temperature Sensor

• Door Sensor

• Control Display Panel Cable

• Temperature Sensor Cable

• Door Sensor Cable

• Installation and Operation Manual

• 5-Year Limited Warranty

UKU Extension Box

• Extension Box

• Installation and Operation Manual

• 5-Year Limited Warranty

Stones 24

• 528 lbs of 2" - 4" (5-10 cm) Round Olivine Sauna Stones

• Safety railing for HIVE heaters helps to protect you from accidentally touching against the hot heater. Beautiful light-colored wooden arcs complement the design of the heater.

• The Air Tunnel has been a HIVE option that speeds up heating by 25%, enhances air circulation, and increases the lifespan of the heating elements. This stainless-steel housing is installed in the center of the heater and will reduce stone capacity by an estimated 2 boxes.

• The embedding flange is useful when you are planning to install your HIVE heater partly inside the sauna bench.

• Current ETA: 1-2 weeks. Shipping lead time is subject to change.

• Flat rate shipping included within the contiguous United States.

• The weight or packaging of this product requires delivery by special appointment, and on a wooden pallet.

• The driver is responsible for curbside delivery only and will lower the items to ground level.

• Prior to shipping this product, we’ll contact the customer to share shipment details and discuss any extenuating delivery circumstances that may complicate or cause additional delivery expenses.

**If you’re in Canada, please reach out for a shipping quote.
